    Name：Motor
    Type：TZ-500-C-5-1
    Click to back： [Back]
    Description：
    ※ Features:
    ◎ compact, reliable, low power consumption.
    ◎ do not need to install any starting device, you can smoothly pull-in operation, and starting torque.
    ◎ gear with high strength, wear good precision small modulus gear, low noise, high mechanical strength.
    ◎ in the irregularly or longer energized stall, the motor temperature is absolutely stable, and does not affect the mechanical strength and electrical properties of the motor.
    ◎ Reply small moment. Instantaneous power, the role of the tension spring device, and can easily reply and reply resistance.

    ※ Application:
    This product is mainly applied to stall and take time off for an automatic response when a device. Such as electric valve, central air-conditioning temperature valve actuators, control valves and other building duct automatic devices.

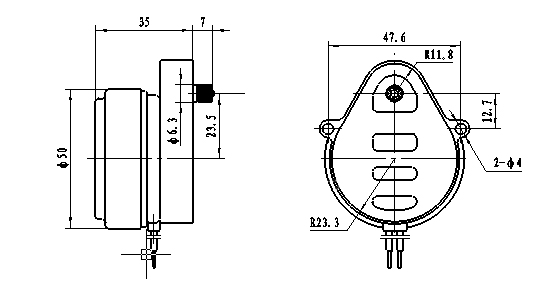

    Main dimensions :

    The main technical parameters:
    Rated voltage: AC220V
    Rated frequency: 50 / 60Hz
    Input Power: 8W
    Input Current: 0.039A
    Insulation class: B
    Noise: <40dB
    Insulation Resistance: 500VDC> 100MΩ
    Dielectric strength: AC1500V50Hz / 1min

    Direction of rotation: clockwise or counter-clockwise (CW / CCW)

    Output speed (r / min)

    1

    3

    4

    5

    Output torque (kfg.cm)

    4.4

    1.6

    1.35

    1.15

    Data listed in tabular frequency is 50Hz; 60Hz frequency is calculated as follows: Speed × 1.2 Torque /1.2
    Speed, steering output shaft style, positioning sleeve and cord outlet location can be customized according to customer requirements.
