    Name：Motor
    Type：TZ-500-C-4-2
    Click to back： [Back]
    Description：
    ※ Features:
    ◎ compact, reliable, low power consumption.
    ◎ do not need to install any starting device, you can smoothly pull-in operation, and starting torque.
    ◎ gear with high strength, wear good precision small modulus gear, low noise, high mechanical strength.
    ◎ in the irregularly or longer energized stall, the motor temperature is absolutely stable, and does not affect the mechanical strength and electrical properties of the motor.
    ◎ Reply small moment. Instantaneous power, the role of the tension spring device, and can easily reply and reply resistance.

    ※ Application:
    This product is mainly applied to stall and take time off for an automatic response when a device. Such as various types of electric valve, central air-conditioning temperature valve actuators, control valves and other building duct automatic devices.

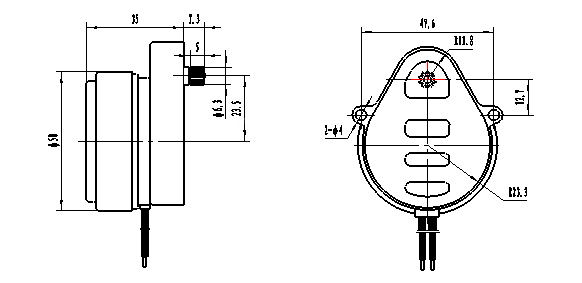

    Main dimensions :

    The main technical parameters:
    Rated voltage: AC24V
    Rated frequency: 60Hz
    Input Power: 7.5W
    Input Current: 0.30A
    Insulation class: F
    Noise: <40dB
    Insulation Resistance: 500VDC> 100MΩ
    Direction of rotation: clockwise or counter-clockwise (CW or CCW)

    Output speed （r/min）

    1

    3

    4

    5

    Output torque（kfg.cm）

    4.5

    1.8

    1.5

    1.2

    Data listed in tabular frequency is 50Hz; 60Hz frequency is calculated as follows: Speed × 1.2 Torque /1.2
    Speed, steering, style and power lines output shaft outlet location can be customized according to customer requirements.
