    Name:Two-sheathed bayonet Xianluo
    Click to back: [Back]


    ※ Excellent Features:
    ◎ screw-on refers to the part of the electric drive and the lower portion of the valve is connected with the valve screw and drive nut screwed fixed.
    ◎ During installation, the first valve installed in the pipe, and then the drive can be screwed onto the valve.
    ◎ two-way valve means for the two openings, the direction of the arrow on the valve, and the arrow one by the water, the other by water.
    ◎ guidelines qualify as tier two, respectively connected with the thermostat.
    ◎ The greatest feature of the electric valve is a central heating and air conditioning system for room temperature control and energy saving

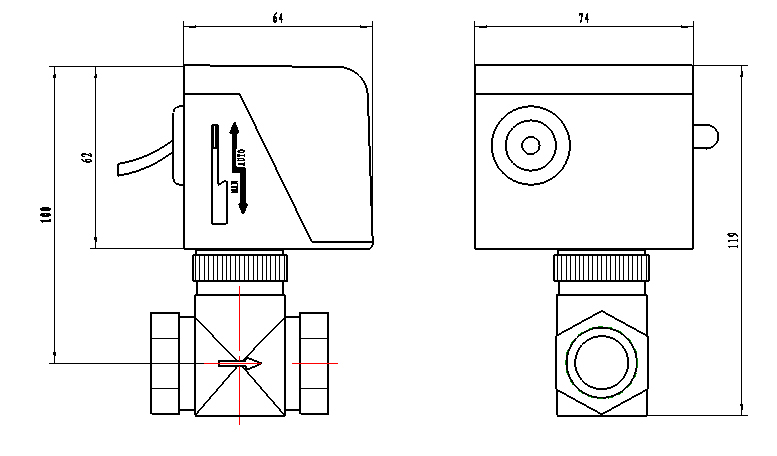

    Main dimensions

    The main technical parameters:
    Rated voltage: AC220V-240V
    Rated frequency: 50 / 60Hz
    Power consumption: 6-8W
    Working temperature: 0 ℃ -90 ℃
    Ambient temperature:0 ℃ -40 ℃
    Valve Specifications: DN15, DN20, DN25, two / three
    ★ Note: The input voltage can be provided upon request, can also provide the drive without a valve.
