    Name:Tee five lines bayonet
    Click to back: [Back]
    ※ Excellent Features:
    ◎ bayonet refers to the part of the electric drive is connected with the lower part of the valve is stuck directly into fixed.
    ◎ During installation, the first valve installed in the pipe, and then drive the valve to jam.
    ◎ three-way valve means into three openings, A port, B port and AB port, A port connection and cooling cycle, B port and the cylinder circuit connections, AB port is connected to the pump flow.
    ◎ guidelines to qualify for the five-wire 105, respectively connected to the opening and closing, public, pump (cooling and heating), a ground terminal.
    The greatest feature ◎ electric control valve is controlled central heating and air conditioning system of water flow and room temperature.

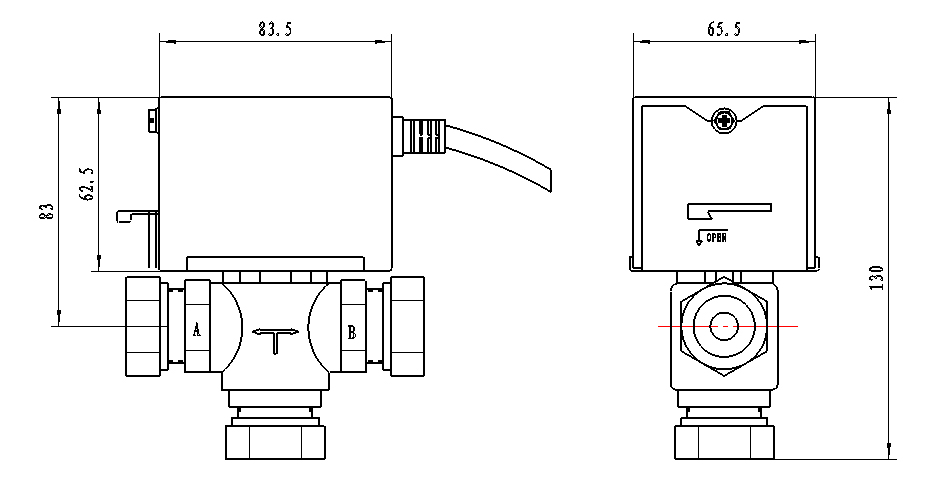

    Main dimensions

    The main technical parameters:
    Rated voltage: AC220V-240V
    Rated frequency: 50 / 60Hz
    Power consumption: 6-8W
    Working temperature: 0 ℃ -90 ℃
    Ambient temperature: 0 ℃ -55 ℃
    Valve Specifications:
    D 3/4''
    ★ Note: The input voltage can be provided upon request, can also provide the drive without a valve.
